How to design a PCB board?

We are profession flexible printed circuit board manufacturers,can be provide FPC flexible circuit board,FPC flexible printed circuit,HDI printed circuit board,SMD led light strip,COB led strip,PCB board design,flexible led display screen,Electronic PCB,printed circuit assembly,circuit card assembly,home facial mask beauty instrument and hair growth device circuit board and so on.

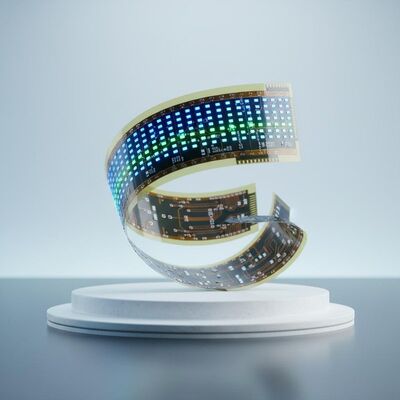

LED Flexible Display Screen FPC LED Display Circuit Board From FPC Manufacturer

Product description:

Product model:HQ045

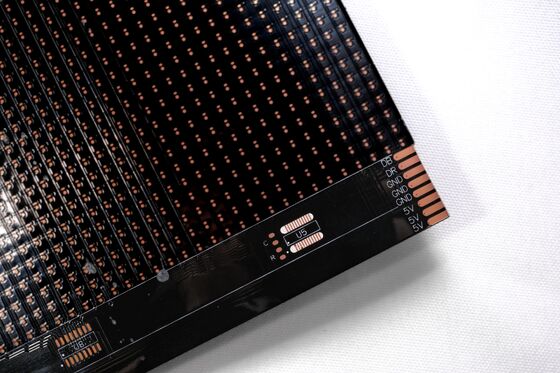

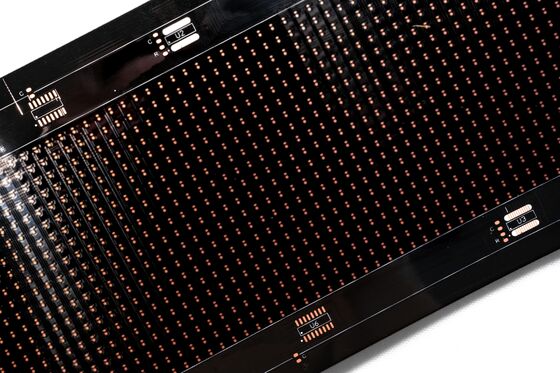

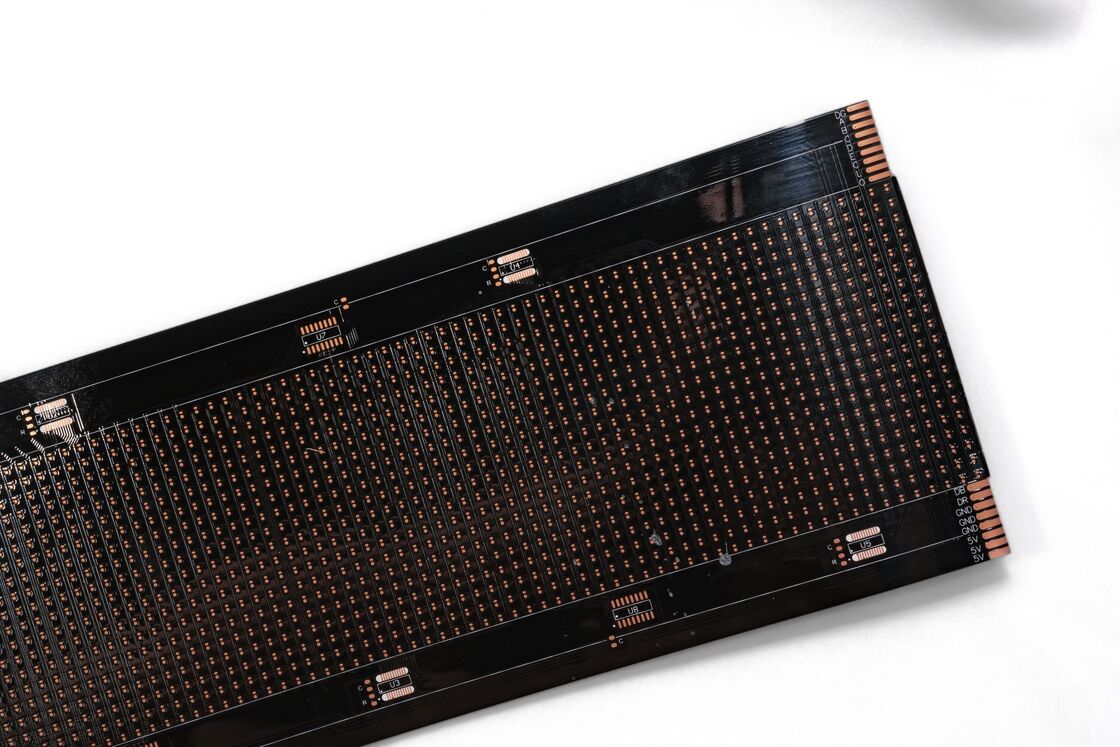

Product Name: LED flexible display screen FPC
Product features: Double layer circuit board, double-sided black film, black text, surface OSP antioxidant

Product specifications:

1.We are the Flexible Pcb and FPC Manufacturer,according to your needs to customize different material thickness and process requirements LED light strip FPC,Precision FPC,Colorful LED strip FPC  and other LED flexible circuit board with single ,double-sided and Multi-layer.

2.Good flexibility and resistance to bending

The factory has a professional bending tester, each batch of materials through

Tens of thousands of bending tests before mass production to ensure product quality.

FPC design parameters

Main technical parameters:

1.About Dimensions:

Precision FPC: The maximum size is240X500mm (limit250X500mm), and there is no limit to the minimum size. Roll material board: maximum width 240. maximum length 100 meters.

2. Number of layers on the board

• The single-layer board structure is simple and generally used in industrial control, electronic instruments, and other fields with relatively simple circuits.
• Compared to single-layer FPC, double-sided boards have two layers of copper foil, increased vias, and formed conductive paths. They are generally used in mobile phones,automotive instruments and other products.

3. Solder mask color

The solder mask colors of FPC are yellow, black, and white. Suggest using yellow,Yellow film is suitable for the vast majority of products,such as various cable products. Black film is commonly used in high-end or light absorbing products,such as cars, mobile phones, LED displays, etc. White film has an additional layer of white coating compared to yellow film, and is often used in products that require reflection,such as lighting fixtures, LED displays, medical beauty products, etc.

4. Copper foil thickness

• Precision FPC single panel options include 18um (0.5oz) and 35um (1oz);
• The precision FPC double-layer board can be selected from 12um (0.33oz),18um (0.5oz),and 35um (1oz).
• Ordinary FPC single panel can choose 18um/25um/35um (1oz)/50um;
• Ordinary FPC double-layer boards can be selected from 18-25um,25-25um,35-35um,or 35-70um.

5. Minimum line width/line spacing

Under normal circumstances, the smaller the difficulty, the higher the defect rate, and it is generally recommended to use at least 3mil.

Service process

1.Consulting

16 years focus on FPC flexible circuit board design and R & D manufacturing, to provide customers with personalized solutions, design drawings, development of new products and provide related technical support.

2.Offer

Sample or batch quotation of the same type of technology, materials, advanced technology, price concessions, greatly for customers to save costs.

3.Profession

Our company has Germany, Japan, Taiwan and other regions of advanced equipment and production technology, professional production, scale. Our factory covers an area of nearly 20,000 square meters, with more than 800 employees and 50 senior technical backbone personnel.

4.Design

Provide solutions to customers to finalize a number of international system certification, can provide substrate production, wiring, principle design, mold, patch, plug-in and open steel mesh one-stop service, 16 years of professional and technical level precipitation, worthy of your choice and trust.

5.Sample Making

We specialize in FPC sample making and customization services, the company has an expedited production line, such as: flexible circuit board dual panel samples can be completed within 5-7 days.

Certificates and Honors

Please note:

All photos on this site are real. Due to changes in lighting, shooting Angle, and display resolution, the image you see may have some degree of chromatic aberration. GongDong HongQi is a professional circuit boards manufacturer with 16 years of history in China. Our products are updated and upgraded every year and We specialize in all kinds of FPC sample making and customization services, If you are interested in our products, please tell us your requirements, we will help you to provide professional solutions, substrate production, wiring, principle design, mold, patch, plug-in and others one-stop service.

please contact us on line or E-mail to us, and we will provide you with one-on-one service from our professional sales team.Thank you for your time.
